High Performance Railway Axle , Straight Rear Axle For Commercial Trucks

Certification
China Jiangsu Railteco Equipment Co., Ltd. certification
China Jiangsu Railteco Equipment Co., Ltd. certification
Customer Reviews
Railteco is a professional railway axle manufacturer, we have cooperated for more than two years and no quality problem was founded. I believe Railteco will always be my business partner after ten or twenty years.

—— VALE

Competitive price and excellent service is Railteco's advantage!

—— DB

I'm Online Chat Now

High Performance Railway Axle , Straight Rear Axle For Commercial Trucks

High Performance Railway Axle , Straight Rear Axle For Commercial Trucks
High Performance Railway Axle , Straight Rear Axle For Commercial Trucks High Performance Railway Axle , Straight Rear Axle For Commercial Trucks

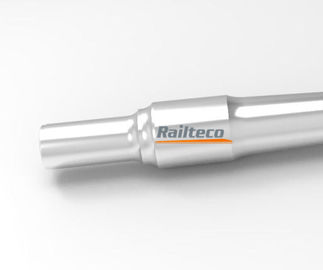

Large Image :  High Performance Railway Axle , Straight Rear Axle For Commercial Trucks

Product Details:
Place of Origin: China
Brand Name: Railteco
Certification: AAR/GOST/TSI/IRIS/ISO
Model Number: Class C
Payment & Shipping Terms:
Minimum Order Quantity: One pcs
Price: Negotiable
Packaging Details: Railteco Standard Packing
Delivery Time: 45 to 60 days after advance payment
Payment Terms: L/C, T/T
Supply Ability: Annual capacity of 40000 pcs

High Performance Railway Axle , Straight Rear Axle For Commercial Trucks

Description
Name: Railway Type C Axle Machining: Blank, Semi, Finish
Axle Load: 17t Axle Length: 1724mm
Wheel Seat Diameter: 177.8mm Certification: ISO9001,ISO14001, OHSAS18001, AAR, IRIS, TSI
High Light:

train axle

,

wagon axle

Railway Axle Class C Freight Wagon Axle Meter Gauge Railroad Wagon Axles Train Axle Wagon Axle Bogie Axle AAR / GOST / TSI Axle





Description of Railway Axle:



A straight axle is a single rigid shaft connecting a wheel on the left side of the vehicle to a wheel on the right side. The axis of rotation fixed by the axle is common to both wheels. Such a design can keep the wheel positions steady under heavy stress, and can therefore support heavy loads. Straight axles are used on trains (that is, locomotives and railway wagons), for the rear axles of commercial trucks, and on heavy duty off-road vehicles. The axle can optionally be protected and further reinforced by enclosing the length of the axle in a housing.



Freight Wagon Axle of Type C Meter Gauge



Parameter
Axle load 17t
Rail Gauge 1000mm
Axle length 1724mm
Journal Diameter 119.16mm
Wheel seat Diameter 177.8mm
Bearing center distance 1498.6mm
Certifications ISO9001, ISO14001, OHSAS18001, AAR, IRIS, TSI.
Tests Chemical analysis, Metallographic, Mechanical analysis, Ultrasonic testing, Magnetic testing, Impact testing, Hardness testing, Surface quality and dimension report.



High Performance Railway Axle , Straight Rear Axle For Commercial Trucks 0

High Performance Railway Axle , Straight Rear Axle For Commercial Trucks 1
