Product Details:
Place of Origin: China
Brand Name: Railteco
Model Number: LTX
Payment & Shipping Terms:
Minimum Order Quantity: One pcs
Price: Negotiable
Packaging Details: Railteco Standard Packing
Delivery Time: 150 days
Supply Ability: According to customer's demand

High Performance Wheel Press Machine Main 500mm Hydraulic Cylinder Stroke

Description
Name: Wheel Set Demount Machine Max. Withdraw Force: 4900kN
Hydraulic Pressure: 25MPa(high Pressure)2.5MPa(low Pressure) Main Hydraulic Cylinder Stroke: 500mm
High Light:

wheel bearing press machine

,

wheel assembly machine

Wheel Press Machine LTX - Wheelset Demount Machine Wheel Demounting Equipment Wheel Disassembly Machine

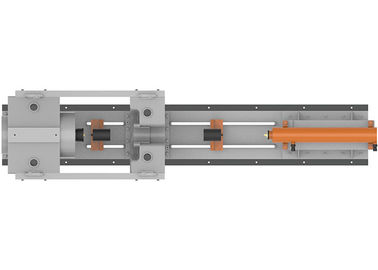

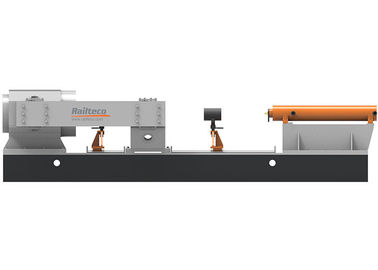

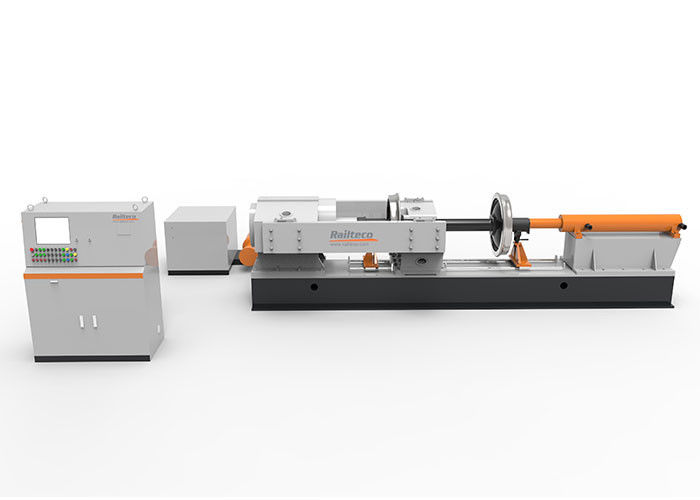

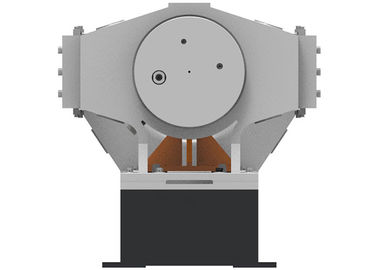

Description of Wheelset Demount Machine:

LTX - Wheelset Demount Machine is mainly used for the railway wheels unloading (standard gauge, meter gauge, broad gauge, narrow gauge). Adjusting the position of the wheel movable supporting can adapt to different wheelsets and different process requirements.



The equipment adopts the side pull board on the supine side, which has high strength and small occupy space, which facilitates the lifting and operation of the work-piece.



The press head of the withdrawal cylinder adopts a spherical adjustment mechanism to prevent axle end damage and journal thickening.



The auxiliary oil cylinder and the main oil cylinder are arranged on the same axis, ensuring that the axle keeps a parallel and stable movement during the withdrawal process.



Linear guide rail type axle support device has rough positioning and longitudinal movement function (without power). It eliminates the need for crane cooperation during the wheel set withdrawal and saves a lot of manpower and material resources.

Adopting the control form of interconnection between IPC and PLC, it has input functions such as axle number, wheel number and their respective manufacturer, production date, wheel withdrawal reason, withdrawal date, etc., and has the storage function of the above parameters and the maximum withdrawal force.



Parameters of Wheelset Demount Machine:

1. Main hydraulic cylinder stroke: 500mm

2. Max. withdraw force of main hydraulic cylinder: 4900kN

3. Support force of deputy hydraulic cylinder: 49-98kN

4. Hydraulic pressure of the hydraulic system: 25MPa(high pressure)

                                                                          2.5MPa(low pressure)

5. Main cylinder speed: 60-180mm/min (working)

                                      480-900mm/min (fast forward)

6. Withdraw beat: 10min / piece





Main hydraulic cylinder stroke 500mm
Max. withdraw force of main hydraulic cylinder 4900kN
Support force of deputy hydraulic cylinder 49-98kN
Hydraulic pressure of the hydraulic system 25MPa(high pressure)
2.5MPa(low pressure)
Main cylinder speed 60-180mm/min (working)
480-900mm/min (fast forward)
Withdraw beat 10min / piece
