Portable Wheel Bearing Press Machine φ680mm - φ1050mm Applicable Wheel Diameter

China Portable Wheel Bearing Press Machine φ680mm - φ1050mm Applicable Wheel Diameter supplier
Portable Wheel Bearing Press Machine φ680mm - φ1050mm Applicable Wheel Diameter supplier Portable Wheel Bearing Press Machine φ680mm - φ1050mm Applicable Wheel Diameter supplier Portable Wheel Bearing Press Machine φ680mm - φ1050mm Applicable Wheel Diameter supplier Portable Wheel Bearing Press Machine φ680mm - φ1050mm Applicable Wheel Diameter supplier

Large Image :  Portable Wheel Bearing Press Machine φ680mm - φ1050mm Applicable Wheel Diameter

Product Details:

Place of Origin: China
Brand Name: Railteco
Model Number: YCY

Payment & Shipping Terms:

Minimum Order Quantity: One pcs
Price: Negotiable
Packaging Details: Railteco Standard Packing
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: According to customer's demand
Contact Now
Detailed Product Description
Name: Portable Bearing Press Machine Withdraw Force: 550kN
Applicable Wheel Diameter: φ680mm-φ1050mm Press-Mounting Force: 500kN
Power: 3kW Overall Dimensions: 1800×700×880mm

Wheel Press Machine Mobile Rolling Bearing Mount & Demount Machine Portable Bearing Press Machine Bearing Assembly



Description of Portable Bearing Press Machine:

YCY - Mobile Rolling Bearing Mount&Demount Machine is flexible in movement, free from site constraints, and satisfy the need for bearing press-fitting and withdrawing at the wheel-set repair site. Press-Mounting and withdrawing can be done simply by replacing simple tooling to meet relative requirements. Computer control is used to automatically generate the press curves and judge whether the mounting process is qualified, automatically record the mounting process data, and provide remote-based data collection solution based on cloud platform to better serve users.



Parameters of Portable Bearing Press Machine:

1. Main cylinder diameter: φ200mm

2. Front cavity working pressure: 21.5MPa

3. Press-Mounting force: 500kN

4. Rear cavity working pressure: 17.5MPa

5. Withdraw force: 550kN

6. Cylinder stroke: 320mm

7. Applicable wheel diameter: φ680mm-φ1050mm

8. Motor power: 3kW

9. Overall dimensions: 1800×700×880mm



Main cylinder diameter φ200mm
Front cavity working pressure 21.5MPa
Press-Mounting force 500kN
Rear cavity working pressure 17.5MPa
Withdraw force 550kN
Cylinder stroke 320mm
Applicable wheel diameter φ680mm-φ1050mm
Motor power 3kW
Overall dimensions 1800×700×880mm

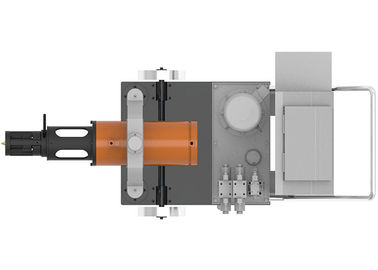

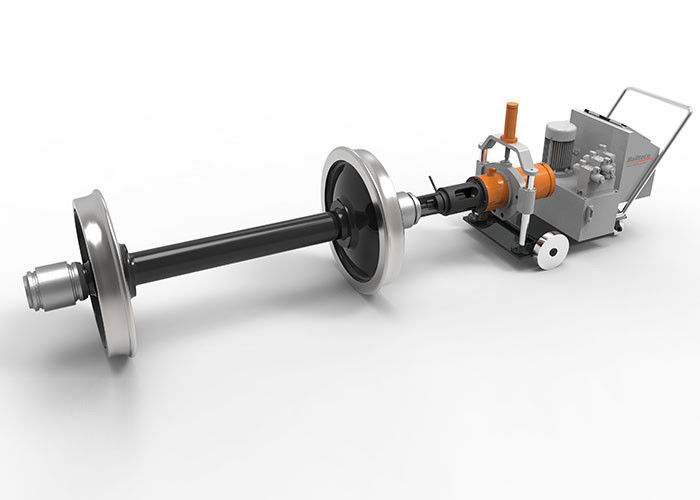

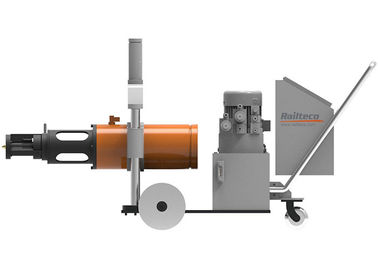

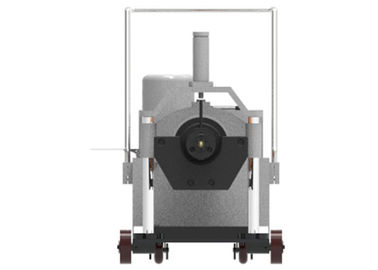

Portable Wheel Bearing Press Machine φ680mm - φ1050mm Applicable Wheel Diameter
