Product Details:
|
Name: | Bearing Press-Mounting Machine | Applicable Axle Length: | 2000mm-2300mm |
---|---|---|---|
Applicable Gauge: | 1435mm | Net Weight: | 6500kg |
Max. Mounting Force: | 600kN | Power: | 15kW |
High Light: | wheel assembly machine,bearing assembly machine |

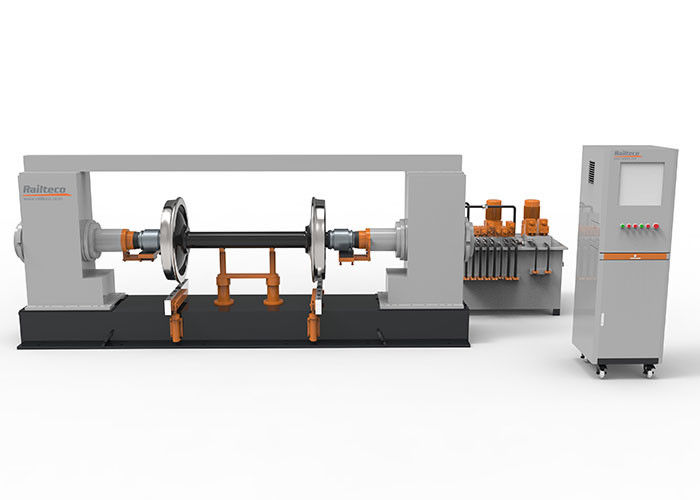

Wheel Press Machine WY2 - Bearing Press-Mounting Machine Wheelset Bearing Pressing Assembly Machine
Description of Railway Bearing Press Machine:
WY2 - Bearing Press-Mounting Machine is mainly used for non-axle box rolling bearing press fitting of railway freight car wheel sets. It is controlled by the computer which can automatically generate the press curve and can determine whether the result is qualified or not, the mounting process data can also be recorded automatically. The work-pieces are automatically aligned with each other, and the two ends can be automatically operated independently, simultaneously with automatic operation or manual step-by-step operation, and the dual-unit dual-pump control ensures good synchronization. Provide cloud-based remote data collection solutions to better serve users.
Parameters of Railway Bearing Press Machine:
1. Max. Mounting force: 600kN
2. Applicable axle length: 2000mm-2300mm
3. Applicable gauge: 1435mm
4. Applicable wheel diameter: φ650mm-φ920mm
5. Applicable bearing inner diameter: φ110mm-φ180mm
6. Pressure detection equivalent: 0.1kN
7. Displacement detection equivalent: 0.1mm
8. Motor power: 15kW
9. Press-Mounting beat: 3min/pair
10. Hydraulic system setting low pressure: 2.5MPa
11. Hydraulic system setting high pressure: 14MPa
12. Net weight: 6500kg
13. Overall dimensions: 4560×900×1880mm
Max. Mounting force | 600kN |
Applicable axle length | 2000mm-2300mm |
Applicable gauge | 1435mm |
Applicable wheel diameter | φ650mm-φ920mm |
Applicable bearing inner diameter | φ110mm-φ180mm |
Pressure detection equivalent | 0.1kN |
Displacement detection equivalent | 0.1mm |
Motor power | 15kW |
Press-Mounting beat | 3min/pair |
Hydraulic system setting low pressure | 2.5MPa |
Hydraulic system setting high pressure | 14MPa |
Net weight | 6500kg |
Overall dimensions | 4560×900×1880mm |
