|Weight:||440 Kg||Axle Load:||25 T|
|Design Speed:||250km/h||Rail Type:||50kg/m, 60kg/m, 75kg/m|
|Sleeper Qty Per KM:||1760||Track Type:||Ballast Track|
concrete railway sleepers,
2600mm cement sleepers

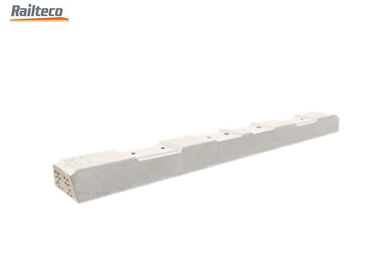

Railway Track Spare Parts Type III Railway Bridge Concrete Sleeper Sleeper for Ballast Track
1. Brief Introduction:
Our production center has three production lines for prestressed concrete sleepers, two production lines of high speed type III monobloc plate, and One production line of cross web prestressed concrete catenary pole. The annual capacity for various sleepers are over 100,000,000 pcs, for high speed type III monobloc base plate is 60,000pcs,and for the catenary pole is 20,000pcs.
The concrete sleepers we manufacture including II type, III type, turnout sleeper , bridge sleeper, capacitance sleeper, broad sleeper, crossing sleeper, balastless turnout sleeper, metro sleeper, urban railway sleepers, and various kinds of ballast slabs.
2. Main Features:
Prestressed concrete sleeper is the best choice of Metro and High-speed rail. As the most popular concrete sleeper, prestressed concrete sleeper is durable, insulated, and with low cost(saving lots of steel materials), it also has below features:
3. Main Paramters for Type III Railway Bridge Concrete Sleeper Sleeper:
|Sleeper Model||Length||Weight||Axle Load||Design Speed||Rail type||Sleeper consumption||Track type|
|III QC||2600mm||440kg||25t||250km/h||50, 60, 75kg/m||1760pcs/km||Ballast track
4. Main Production Process:
Concrete mixing, steel bar machining and frame assembly, install embed dowels, inspect the mould, place the steel frame into the mould, install accessories, connect to the tension rod, insulation inspection of steel frame, tension, pour the concrete into the mould, steam curing, release the tension, demould and lift away, clean the mould, anchor seal, inspection, water curing, storage and etc.
5. Quality Assurance:
Our prestressed concrete sleeper manufacture factory have passed ISO9001 international quality system certification and acquired industry production license from National Quality Monitor Bureau.
6. Packing and Transportation:
Seaworthy packing, fully considering the durability, load and unload, economic for transportation.
7. Why Choose us?
8. Display of sleeper construction sites:
