Wheelset Gearbox Transmission Cleaning Machine 0.3-0.6MPa 3kW Host Power

Wheelset Gearbox Transmission Cleaning Machine 0.3-0.6MPa 3kW Host Power
Wheelset Gearbox Transmission Cleaning Machine 0.3-0.6MPa 3kW Host Power Wheelset Gearbox Transmission Cleaning Machine 0.3-0.6MPa 3kW Host Power Wheelset Gearbox Transmission Cleaning Machine 0.3-0.6MPa 3kW Host Power Wheelset Gearbox Transmission Cleaning Machine 0.3-0.6MPa 3kW Host Power

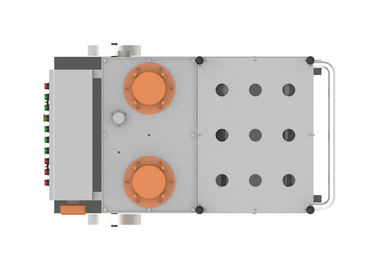

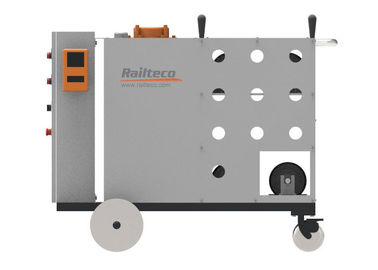

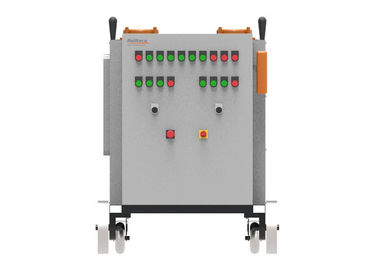

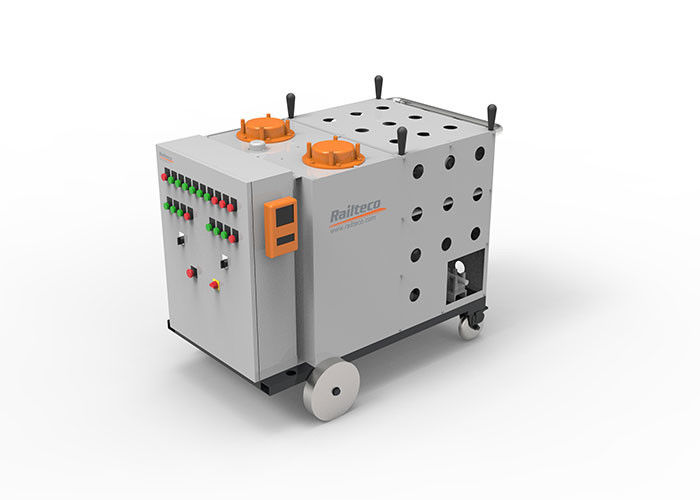

Large Image :  Wheelset Gearbox Transmission Cleaning Machine 0.3-0.6MPa 3kW Host Power

Product Details:
Place of Origin: China
Brand Name: Railteco
Model Number: ZYX
Payment & Shipping Terms:
Minimum Order Quantity: One pcs
Price: Negotiable
Packaging Details: Railteco Standard Packing
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: According to customer's demand

Wheelset Gearbox Transmission Cleaning Machine 0.3-0.6MPa 3kW Host Power

Description
Name: Railway Gear Box Washing Machine Production Beat: 5-50 Min/set
Cleaning Tank Effective Volume: 235 L Cleaning Pressure: 0.3-0.6MPa
Power: 3kW Filtration Accuracy: 10μm
High Light:

bearing grinding machine

,

gear box washing machine

Railway Workshop Equipment ZYX - Gear Box Online Washing Machine Wheelset Gearbox Cleaning Machine



Description of Gear Box Online Washing Machine:

ZYX- Gear Box Online Washing Machine is used for 1st or 2rd level repairs of EMU to meet the on-line washing requirements of the CRH various types of EMU gearboxes within the EMU segment. Adopting frequency conversion technology, fuel supply volume is adjustable to ensure the balance between oil supply and return. The two gearboxes can be cleaned at the same time with high work efficiency. The cleaning oil adopts forced circulation and strong magnetic two-way filtration with high filtering accuracy. Provide cloud-based remote data collection solutions to better serve users.



Parameters of Gear Box Online Washing Machine:

1. Cleaning Pressure: 0.3-0.6MPa

2. Production Beat: 5-50 min/set

3. Cleaning Tank Effective Volume: 235 L

4. Filtration accuracy: 10μm (customize)

5. Host power: 3kW

6. Power supply: three-phase four-wire 380/220V, 50Hz



Wheelset Gearbox Transmission Cleaning Machine 0.3-0.6MPa 3kW Host Power 0
