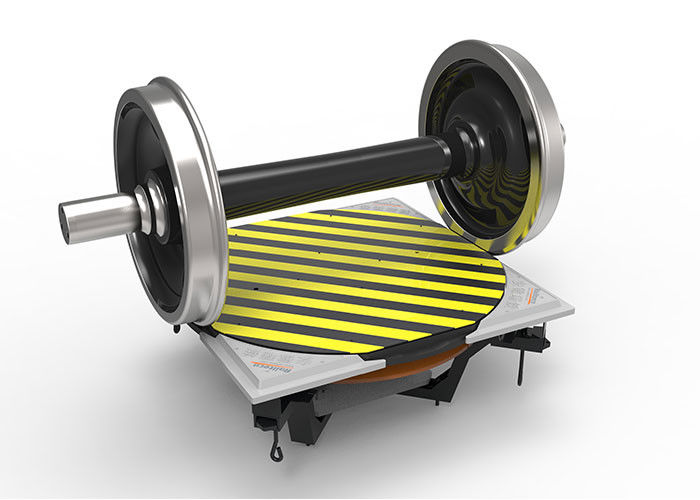

Electric Railway Wheelset Turntable 1425×1425×550mm For Train / Locomotive

Electric Railway Wheelset Turntable 1425×1425×550mm For Train / Locomotive
Electric Railway Wheelset Turntable 1425×1425×550mm For Train / Locomotive Electric Railway Wheelset Turntable 1425×1425×550mm For Train / Locomotive Electric Railway Wheelset Turntable 1425×1425×550mm For Train / Locomotive Electric Railway Wheelset Turntable 1425×1425×550mm For Train / Locomotive

Large Image :  Electric Railway Wheelset Turntable 1425×1425×550mm For Train / Locomotive

Product Details:
Place of Origin: China
Brand Name: Railteco
Payment & Shipping Terms:
Minimum Order Quantity: One pcs
Price: Negotiable
Packaging Details: Railteco Standard Packing
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: According to customer's demand

Electric Railway Wheelset Turntable 1425×1425×550mm For Train / Locomotive

Description
Name: Railway Wheelset Turntable Turntable Lifting Weight: 2.5t
Turntable Diameter: φ1425mm Power: 1.1kW
Turntable Lifting Height: 50-70mm Dimension: 1425×1425×550mm

Railway Wheelset Turntable ZZP - Built - in Electric Wheelset Turntable Train Turntable Locomotive Turntable



Brief Description of Railway Wheelset Turntable:

ZZP - Built-in Electric Wheelset Turntable, the maximum diameter is less than the track gauge (standard gauge use φ1435mm), no need to cut the rail when installing, which will not reduce the bearing capacity of the rail, the steering wheel rises 50-70mm when turning direction, the steering wheel shall reset after turning, slow and shock-free during rising and resetting, the wheel set does not have contact with the turntable when normally passing the rails, which can protect the wheel tread and turntable to the greatest extent. Provide cloud-based remote data collection solutions to better serve users.



Parameters of Railway Wheelset Turntable:

1. Turntable diameter: φ1425mm

2. Turntable indexing angle: ±90°, ±180°

3. Turntable lifting weight: 2.5t

4. Turntable loading weight (stationary): 5t

5. Turntable lifting height: 50-70mm

6. Turntable bearing weight (motion): 2.5t

7. Motor power: 1.1kW

8. Overall dimensions: 1425×1425×550mm



Turntable diameter φ1425mm
Rotary indexing angle ±90°, ±180°
Turntable loading (motion) 2.5t
Turntable loading (stationary) 5t
Turntable lifting height 50-70mm
Turntable bearing weight (motion) 2.5t
Motor power 1.1kW
Overall dimensions 1425×1425×550mm





Electric Railway Wheelset Turntable 1425×1425×550mm For Train / Locomotive 0

Electric Railway Wheelset Turntable 1425×1425×550mm For Train / Locomotive 1
