840mm Railway Wheel Set For Wagons 22.9T/25T Axle Load Wagon Wheelset

840mm wheelset For Wagon Bogie, Wagon wheelset

Railway Wheel Set 840mm Wheelset Comply With IRS-R19/93 Railroad Wagon Wheelset

840mm Wheelset

Details:

Brand:Railteco

Country of origin:China

Application:For Wagon wheelset

Axle load:25t/22.9t

Certificate:TSI Certification

Process:Forging

Warranty:5 years

Price:Negotiable

Payment:T/T or L/C

Supply ability: 1500/per month

Period for delivery: (In Railteco)Around 45-60 days

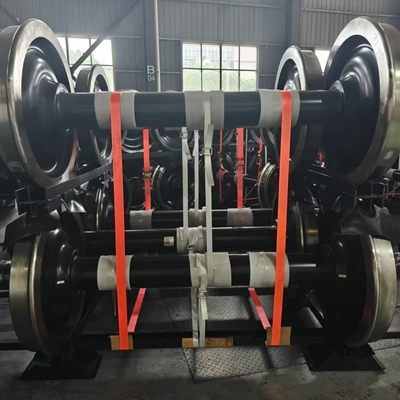

Regular packing:Pallet(wheelset without bearing and axle box, one 20GP container can load 12units wheelset)

Wheelsets ,gauge 1676 mm, with monoblock wheels of 840 mm ,for axle load of 25 tons according to IRS-R19/93 Part 1.

Standard:IRS-R19/93

Mark: According to customer 's drawing and requirements

Main technical characteristics :

- gauge 1676 mm

- total axle length 2467 (+1/-1 ) mm

- distance between bearings axis 2000 mm

- distance between the 2 wheels pressed on axle: 1600 (+1/-1)

- wheelset weight abt . 1101 kg

- wheel rolling diameter of 840 (+3/0 ) mm

- wheel’s rim width 127 (+1/-1 ) mm

- thickness of web:

- at connection with hoop 20 (+2/-0 ) mm

- at connection with nave 25 (+2/-0 ) mm

- external diameter of hub on the side opposing the lip of 240 (+4/-0) mm

- external diameter of hub on the lip side of 240 (+4/-0) mm

- length of hub : 185 (+3/-0) mm

- axle body diameter of 173 (+2/-0) mm

- nominal wheel pressing-on the -axle diameter of 200 mm

- total axle length 2467 (+1/-1 ) mm

- axle journal diameter of 157(+0.239/+0.264) mm

- axle journal length 226 (+0.5/- 0.5) mm

- axle obturator diameter f 160 t7 (+0.174/+0.134) mm

- obturator length 58 (+1/-0) mm

- nominal wheel pressing-on the -axle diameter of 200 mm
