Product Details:
|
Name: | Wheel Bearing Demount Machine | Withdraw Bearing Diameter: | φ110-φ160mm |
---|---|---|---|
Applicable Gauge: | 1435mm | Axle Length: | 2000-2400mm |
Single-side Max. Withdraw Force: | 600kN | Power: | 11kW |
High Light: | wheel bearing press machine,wheel assembly machine |

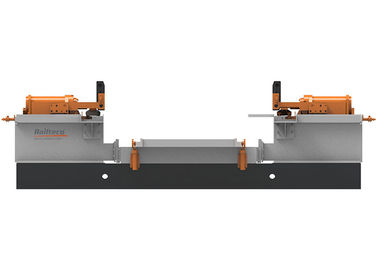

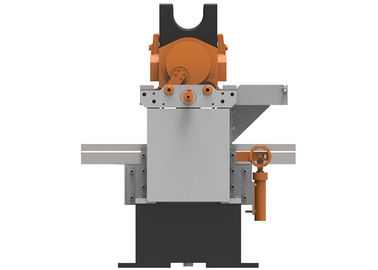

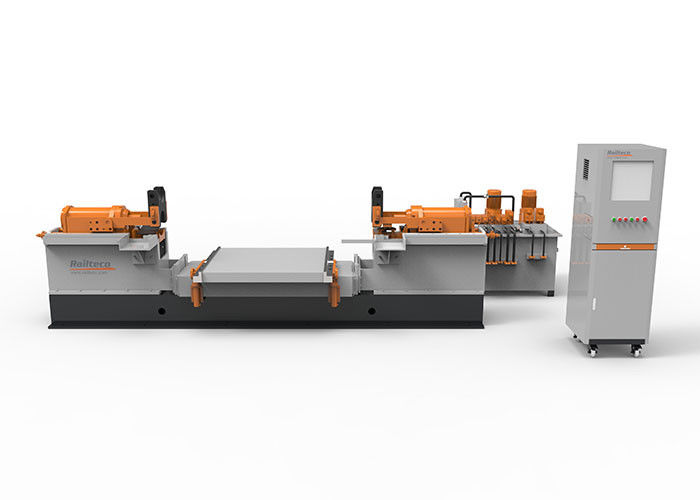

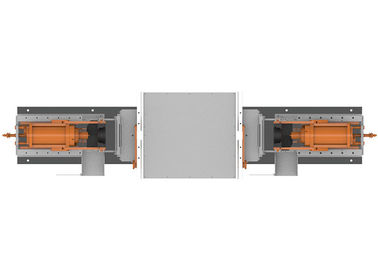

Wheel Press Machine CXD - Bearing Demount Machine Bearing Disassembly Machine Wheelset Bearing Withdraw Machine
Description of Wheelset Beaing Demount Machine:
CXD - Bearing Demount Machine is applicable to the rolling bearings withdrawal operation of urban rail, metro and railcar, also it is a special maintenance equipment for urban rail, metro and railcar. Computer-controlled, with functions of data input, storage and output, simple operation by high level of automatic or manual.
Withdraw methods can be single side or both sides at the same time, through-type layout, bearings automatically roll out of the station after withdrawing which is facilitate to flow operations.
Adopting pushing and disassembling structure, the dismounting force of the bearing is taken by the cylinder assembly, it is not transmitted to the equipment bed, and the operation is stable and reliable. The withdrawing process has no damage to the axle end and the bearing.
Parameters of Wheelset Bearing Demount Machine:
1. Production beat: ≤5min/set
2. Applicable wheel diameter: φ720-φ920mm
3. Applicable wheelset gauge: 1435mm
4. Axle length: 2000-2400mm
5. Withdraw bearing diameter: φ110-φ160mm
6. Single-side Max. withdraw force: 600kN
7. Installed power: 11kW
8. Host dimensions:4800×1200×1520mm
9. Dimensions of hydraulic station: 980×800×1200mm
10. Weight: 4500 kg
Production beat | ≤5min/set |
Applicable wheel diameter | φ720-φ920mm |
Applicable wheelset gauge | 1435mm |
Axle length | 2000-2400mm |
Withdraw bearing diameter | φ110-φ160mm |
Single-side Max. withdraw force | 600kN |
Installed power | 11kW |
Host dimensions | 4800×1200×1520mm |
Dimensions of hydraulic station | 980×800×1200mm |
Weight | 4500 kg |
